Throw out bearing clips rotated home
It dawned on my to install the clutch hose before the engine
Cleaning clutch faces
Jim Gevay torquing the clutch with alignment tool in place 01
Ready for gearbox

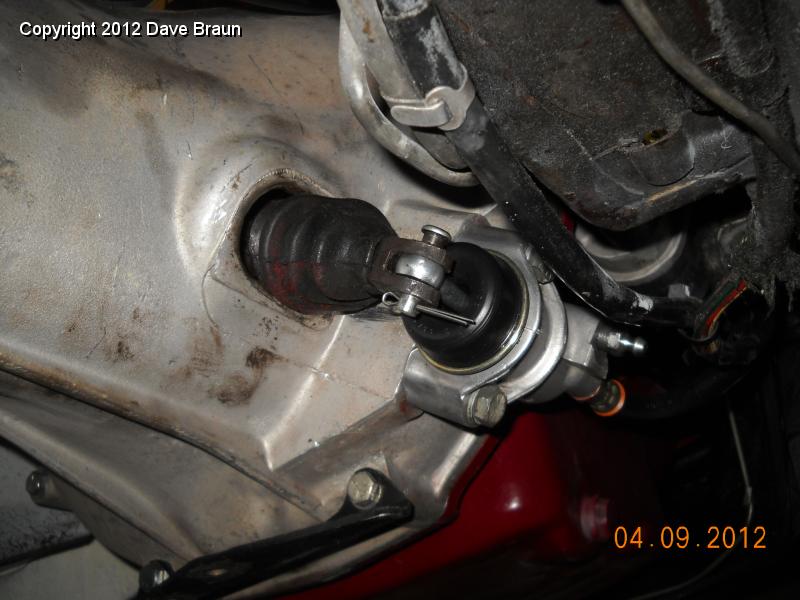

  Clutch bled, after new boot, spread cotter.jpg - We are using DOT 5 Silicone in the clutch. Bled the clutch line the normal two person way. Still had air in the slave cylinder so Diane and I pressure bled it using the front disc brake. The whole job took only 20 minutes. A lever boot is on order from Moss, I'll spread the cotter after it arrives.
Lubing clutch push rod
Clutch boot installed
Final Clutch cylinder bleed using front brake 01
Final Clutch cylinder bleed using front brake 02
Final Clutch cylinder bleed using front brake 03

37 | We are using DOT 5 Silicone in the clutch. Bled the clutch line the normal two person way. Still had air in the slave cylinder so Diane and I pressure bled it using the front disc brake. The whole job took only 20 minutes. A lever boot is on order from Moss, I'll spread the cotter after it arrives.
