ebay master cylinder
Silicon RTV to fix minor cap cracking you actually want the venting
Master cylinder with resivoir removed one screw was sacrificed
push rod and spring clip
this hex comes out and the valve is removed by depressing the primary plunger

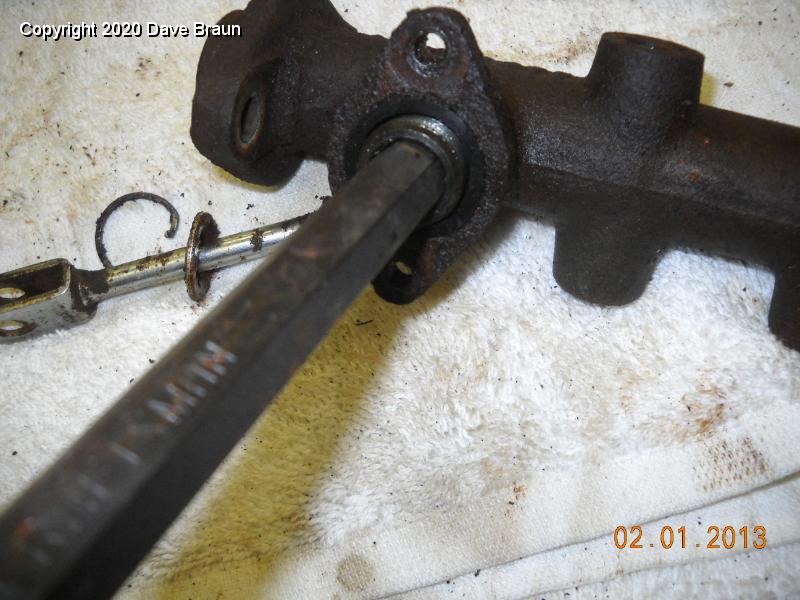

  half inch hex removes fastener.jpg
resivoir o-rings
valve
Primary piston and seal
secondary piston and spring with retainer clip
retainer clip opened
