LH metal to metal repair
LH smoothing on lower quarter 02
RH wing rust
Cutting of section of RH quarter 02
Cutting of section of RH quarter 03

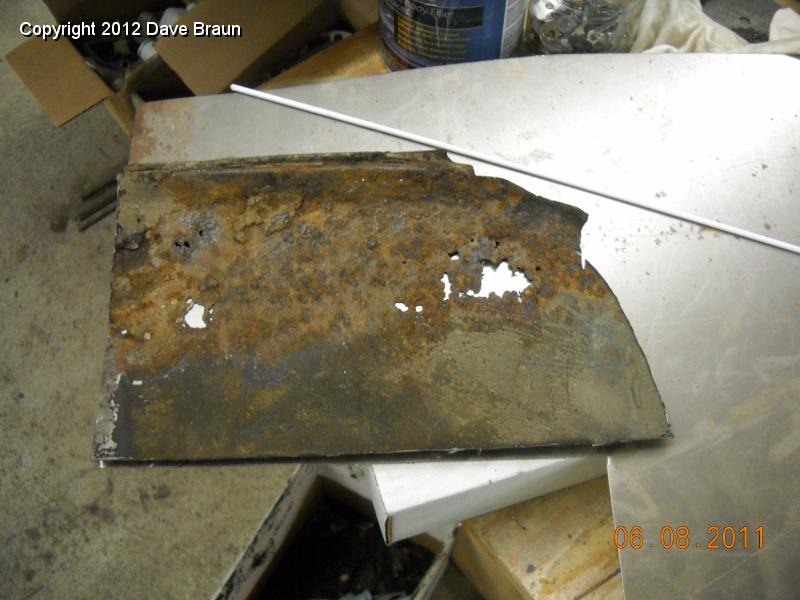

  Removed RH section.jpg - Using the piece removed from the lower RH quarter to create the patch metal. We left the lip on the wing, and only removed as much wing as was damaged. We did have replacement panels on hand but elected not to use them.
Cutting patch for RH wing
Using brake to bend patch for RH wing
RH patch and original panel
RH metal to metal repair of inner rocker- note brazed in flange for inner shield
Fitting and clamping RH patch panel

32 | Using the piece removed from the lower RH quarter to create the patch metal. We left the lip on the wing, and only removed as much wing as was damaged. We did have replacement panels on hand but elected not to use them.
