Fixing the bracket to the dash support panel
Shrink wrapped terminals and vinyl tape for neg ground devices
Center terminal is positive which is ground on the car but hot on devices
The black wire goes to the brown hot all the time supply side- the red wire to the black positive ground
Installation from the side

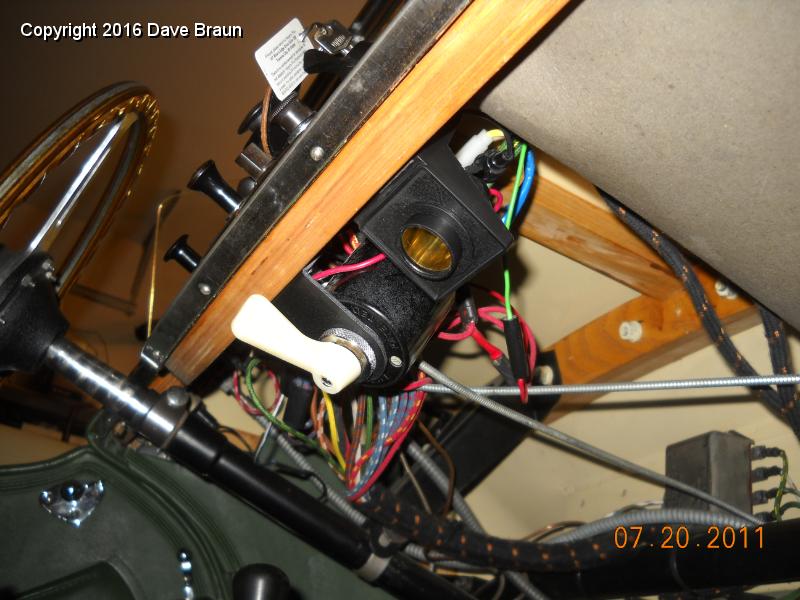

  Socket mounted in holder.jpg
Barely visible in this view and only because the flash illuminated it





7 | Socket mounted in holder Download
