wiper motor tear down
snaoped the brush holder had to epoxy it
actuating side stiff but clean
actuating side reassembled
epoxied brush holder

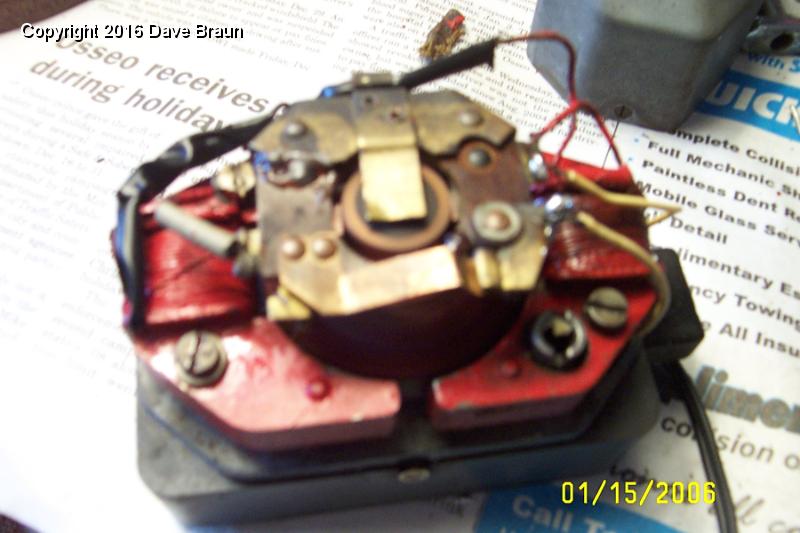

  spinning the motor on the battery.JPG - Spinning on 12 VDC. It is really cool the way this thing worked, especially after all the mixups and breakages. I also have a detailed archive note from the BBS from Larry Shoer to thank for orienting the 14 tooth gear to the 8 tooth segment for proper parking.
forward view of wiper motor before paint
painting and heating wrinkle paint
wrinkle paint oven
finished wiper motor
finished wiper motor 2

11 | Spinning on 12 VDC. It is really cool the way this thing worked, especially after all the mixups and breakages. I also have a detailed archive note from the BBS from Larry Shoer to thank for orienting the 14 tooth gear to the 8 tooth segment for proper parking. Download
