Test fitting fascia with piping
Working out location of Turn Signal SW
Installing dash piping
Adding shim to bring panel out
Removing excess material at glove box

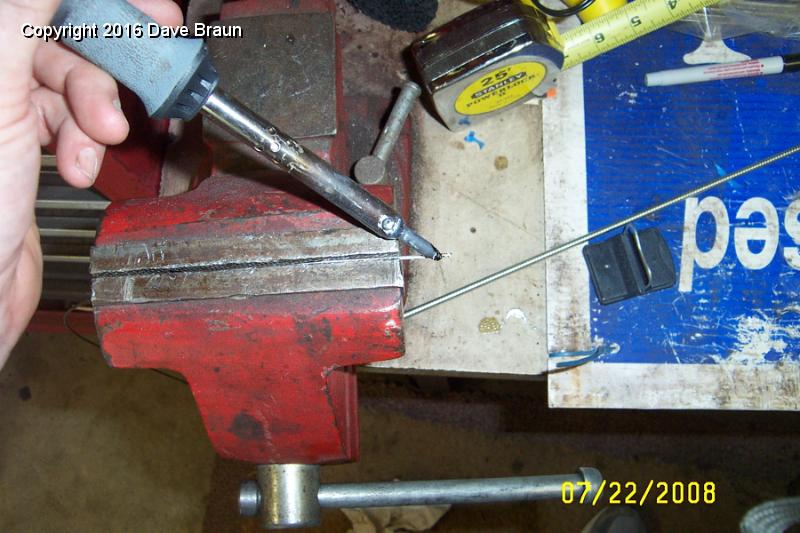

  Tinning new starter cable.jpg - Tinning the end of the starter cable after I trimmed it. I bought this cable in case I couldn't fix the choke cable. Even though the starter cable is under tension and doesn't need a housing because it has a return spring, the cable housing was shortened too many times to really be acceptable. You just have to withdraw the cable, trim the housing with a dremel, cut the cable to the proper length, solder the tip and smooth with a dremel. Simple!
Getting ready to wire in instrument panel
Glove box installed
How deeply the sub fascia is fitting
Seven shim washers
Position of dash after shimming the sub dash 2

73 | Tinning the end of the starter cable after I trimmed it. I bought this cable in case I couldn't fix the choke cable. Even though the starter cable is under tension and doesn't need a housing because it has a return spring, the cable housing was shortened too many times to really be acceptable. You just have to withdraw the cable, trim the housing with a dremel, cut the cable to the proper length, solder the tip and smooth with a dremel. Simple! Download
