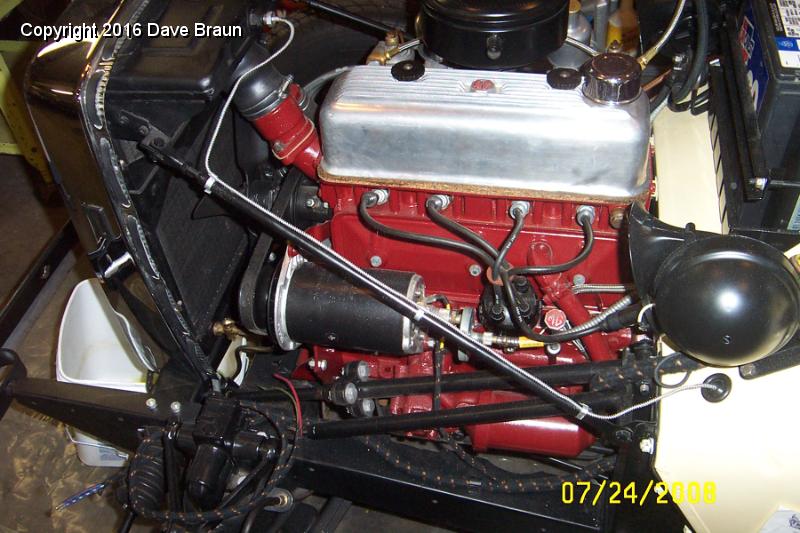

  Water temp bulb.jpg - Here is the routing of the water temp capilary tube. It travels straight with no coils to the radiator stay (the radiator and the stay are stationary, If the bulb was in the engine, coiling the tube would be a good idea) and then into the small grommet on the firewall. I lowered the level of coolant in the radiator, and removed the temporary plug, and installed the temperature bulb.
