Sliding bracket under side curtain frame
Marking LH door for front frame
Installing LH front door side curtain bracket01
Installing RH door side curtain bracket
Pencil frame tracing 01

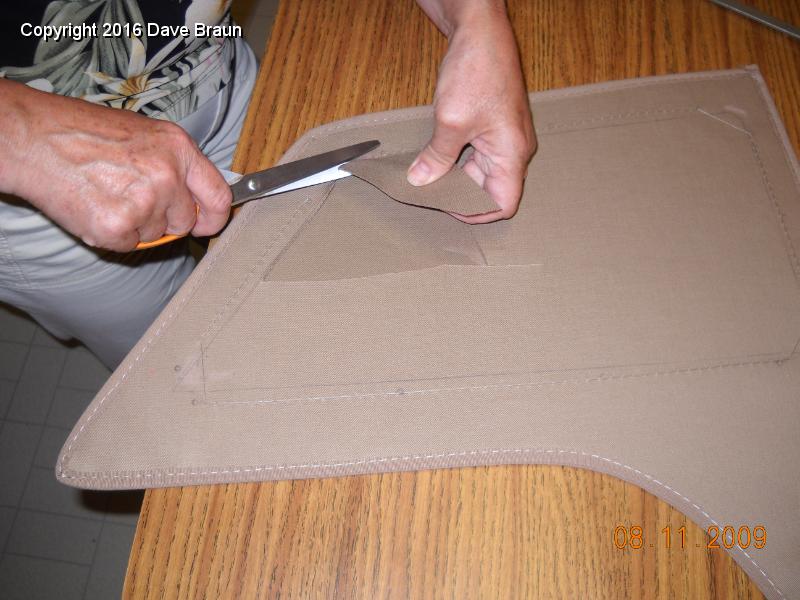

  Trimming on the pencil lines 01.jpg - Diane is better with scissors so she is trimming the side curtain fabric away from the lexan. We are cutting well inside the pencil line to remove the line and to get the trim well inside the metal framework. The inside is cut first, as this is where the metal framework is traced while the frames are on the car and a helper holds the canvas up to the frame from the outside.
Trimming on the pencil lines 02
Drilling through the lexan and fabric
Checking fit of framework
Placing captive carriage bolts into strip
tightening nuts

37 | Diane is better with scissors so she is trimming the side curtain fabric away from the lexan. We are cutting well inside the pencil line to remove the line and to get the trim well inside the metal framework. The inside is cut first, as this is where the metal framework is traced while the frames are on the car and a helper holds the canvas up to the frame from the outside. Download
