Cleaning up the clutch MC
Honed assembled but missing a circlip
Bellows off Clutch slave first is a polished piston
Clutch slave internals
Gunk and corrossion where the polished piston mates

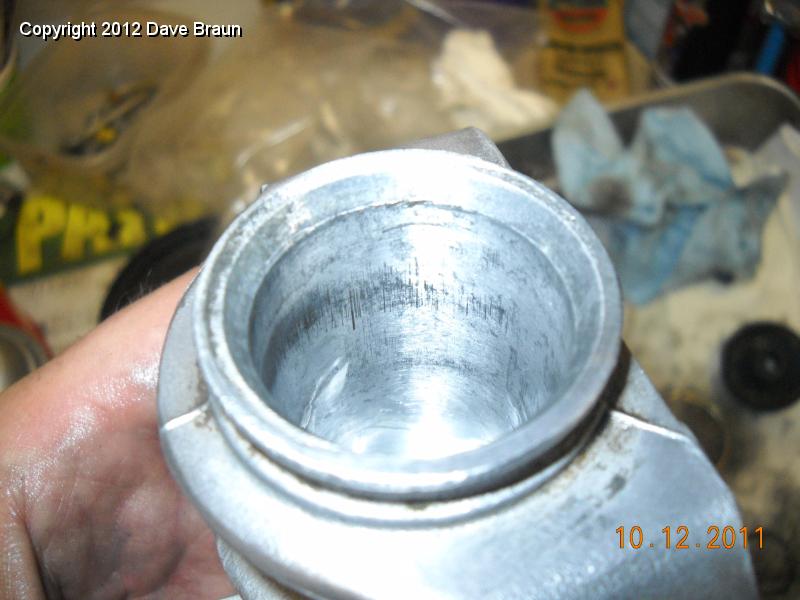

  After honing.jpg - After cleaning up, there is only light scoring.
Spring installed
After spring is a valve assembly
A rubber cup is after the valve assy
Piston in pre-bled and set aside
Clutch MC installed

13 | After cleaning up, there is only light scoring.
