Gunk and corrossion where the polished piston mates
After honing
Spring installed
After spring is a valve assembly
A rubber cup is after the valve assy

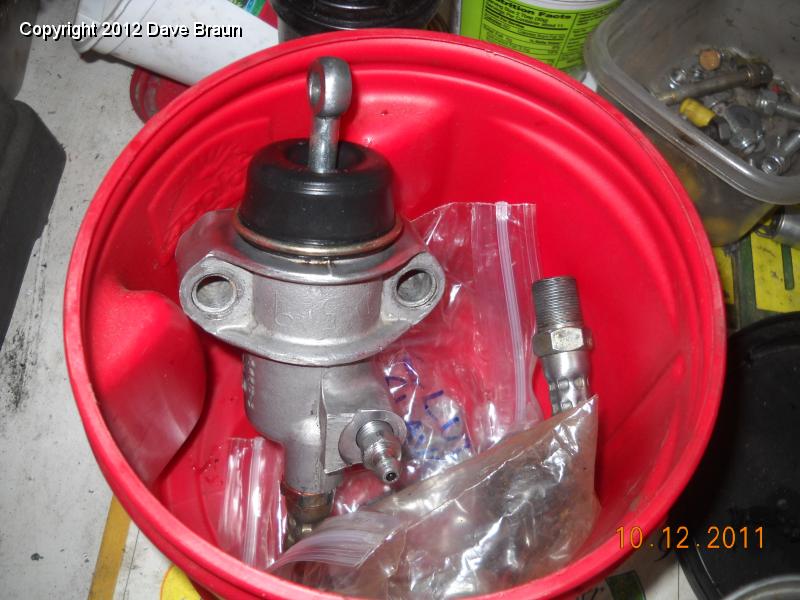

  Piston in pre-bled and set aside.jpg - Finally the metal piston goes in, with the dished side up to accept the rod. The bellows goes on and the ring secures it in place. Fill it up on the bench with fluid and as long as you keep it upright, it will stay filled.
Clutch MC installed
Clutch MC installed 2
Tightening Clutch MC banjo bolt
Pedals installed
LUK clutch on special from LBC

17 | Finally the metal piston goes in, with the dished side up to accept the rod. The bellows goes on and the ring secures it in place. Fill it up on the bench with fluid and as long as you keep it upright, it will stay filled.
