Negative Ground LED rear light
Connector side of light assembly for a negative ground set note the black wire
Complete kit for positive ground note the yellow wire for ground
Taillight with bulb fitted

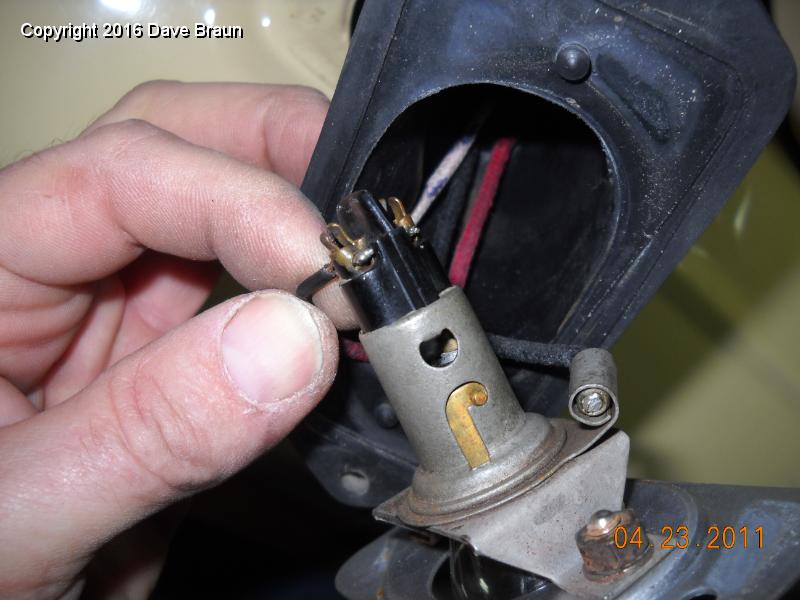

  An original socket uses push spring terminals and bare wires to make connections.jpg - The original socket has spring loaded terminals for the parking and braking functions, a bullet connector is the ground.
Removing soldered large bullet from ground
Large bullet from ground
Removing original socket
Oringal socket removed
Stainless steel hardware including spacers to fit LED assy

5 | The original socket has spring loaded terminals for the parking and braking functions, a bullet connector is the ground. Download
