Bonnet catch and latch hardware
Wing and bonnet bolts painted
Bonnet Latches assembled
Disassemble one latch at a time
Install the latch back plate

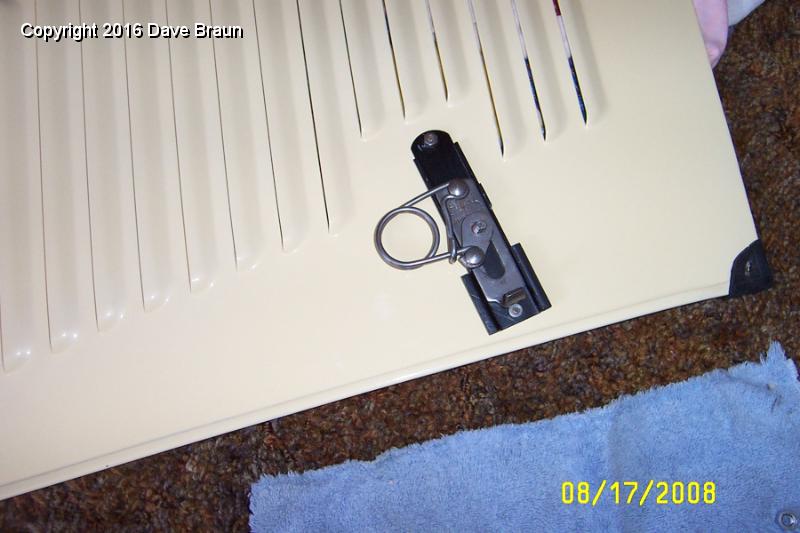

  handle upside down install latch mechanism.jpg - Install the handle upside down from the outer side which allows you to install the mechanism in the backing plate while it isn't toggled over. Tighten the handle nut completely. The goal is to have the handles facing aft when the mechanism is pulled up, and the handle rotating up and over, not down and over to open the mechanism.
Bonnet corner protection delemma
Front side of Bonnet corner protection 01
Back side of bonnet corner protection
Bonnet sides with corner protection and latches
bonnet fully assembled

70 | Install the handle upside down from the outer side which allows you to install the mechanism in the backing plate while it isn't toggled over. Tighten the handle nut completely. The goal is to have the handles facing aft when the mechanism is pulled up, and the handle rotating up and over, not down and over to open the mechanism. Download
