Placing captive carriage bolts into strip
tightening nuts
Dave demonstrating a scowl
Increasing depth of trim
Ready for test fitting

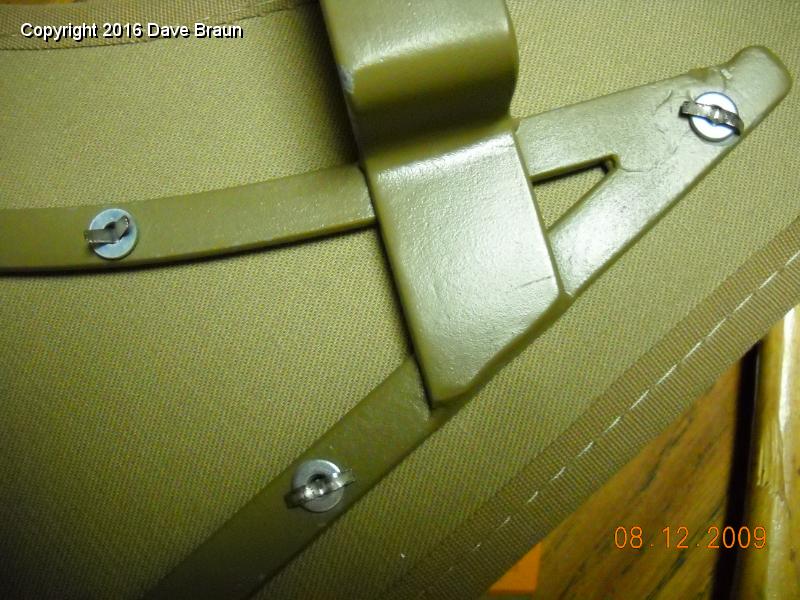

  Bending split rivets over the washer.jpg - I didn't like the rivets Moss supplied, I thought the heads were too large. The split rivets are from the Hillman Supply trays at the hardware store. They are 3/16 in diameter with a small correct head. I wish they would have had slightly shorter rivets as the split is above the supporting washers, but they will work fine.
Split rivet from the front
Finished rear side curtains
Using a soft cloth to protec the lexan
Slipping the carriage bolts and nuts in first 2
Slipping the carriage bolts and nuts in first

46 | I didn't like the rivets Moss supplied, I thought the heads were too large. The split rivets are from the Hillman Supply trays at the hardware store. They are 3/16 in diameter with a small correct head. I wish they would have had slightly shorter rivets as the split is above the supporting washers, but they will work fine. Download
