checking alignment of timing gears
added four shims
dressing woodruff keys
timing chain and marks aligned this is number four firing
Installing chain and gears
  Cam timing wheel timing checked out perfectly with no offset keys.jpg
getting top dead center by going either side
Distributor drive home
Installing Distributor drive using rocker stud
with one firing install fat side up will rock to 2 and 8
MGA drum screw needs slight trim off bottom

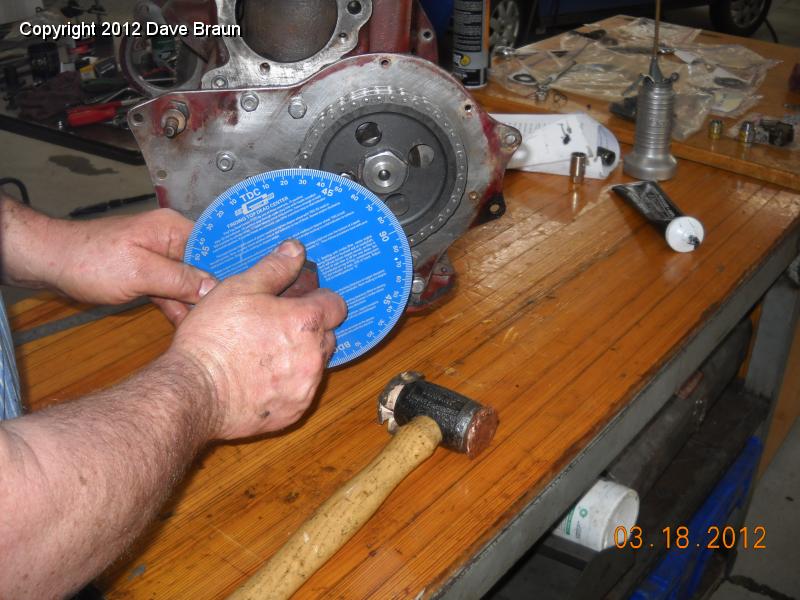

46 | Cam timing wheel timing checked out perfectly with no offset keys
