dressing woodruff keys
timing chain and marks aligned this is number four firing
Installing chain and gears
Cam timing wheel timing checked out perfectly with no offset keys
getting top dead center by going either side

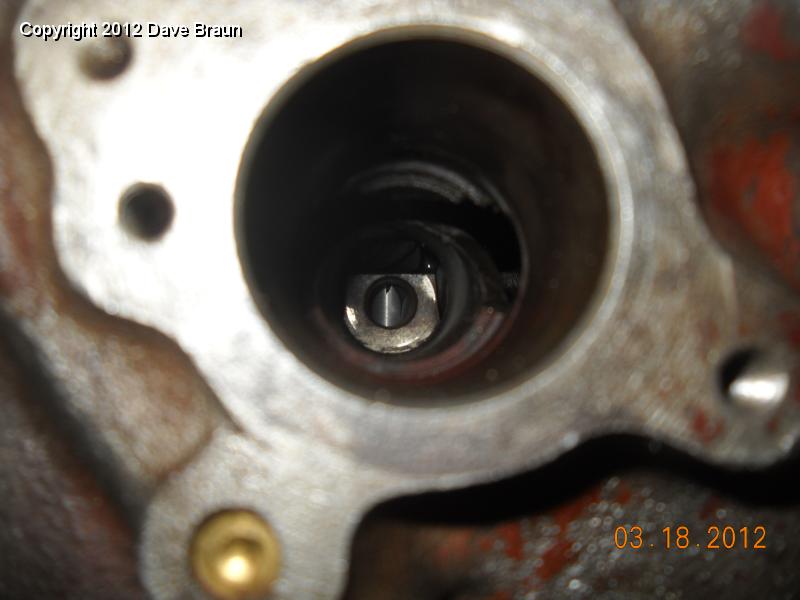

  Distributor drive home.jpg
Installing Distributor drive using rocker stud
with one firing install fat side up will rock to 2 and 8
MGA drum screw needs slight trim off bottom
Installing new chain tensioner 00
Installing new chain tensioner 01

48 | Distributor drive home
