Removing manifold studs from head 01
Removing manifold studs from head 02
valve side of head
head studs installed torqued to 5 ft lbs
Payen head gasket in place note silicon built in to rh side of block

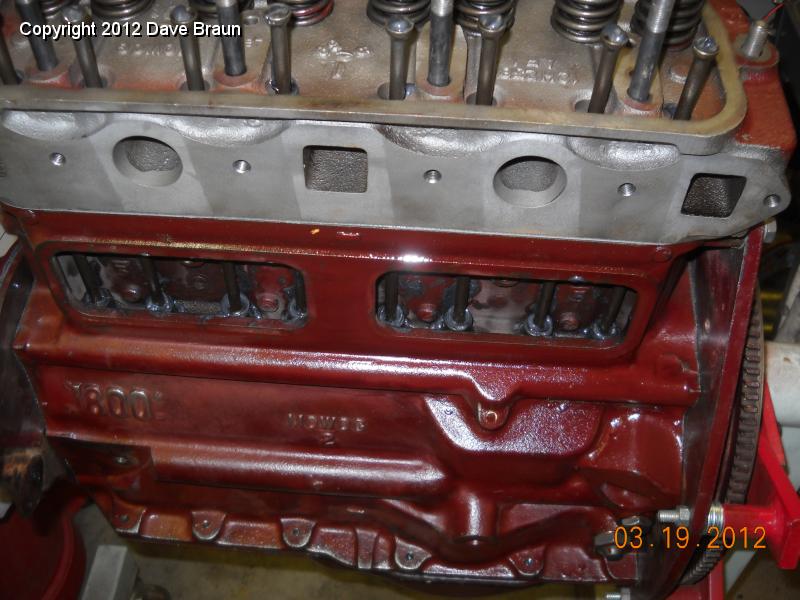

  Head in place.jpg
Head in place 02
Rocker pedestal shims in place
Taller rocker pedestal studs to outside for rocker cover
Rocker pedestal studs 25 ft lbs head studs to 50 foot lbs
setting valves for initial run in at 025

77 | Head in place
