head studs installed torqued to 5 ft lbs
Payen head gasket in place note silicon built in to rh side of block
Head in place
Head in place 02
Rocker pedestal shims in place
  Taller rocker pedestal studs to outside for rocker cover.jpg
Rocker pedestal studs 25 ft lbs head studs to 50 foot lbs
setting valves for initial run in at 025
Rocker cover sanded and gasket RTV in setting in place
pushrod side covers gaskets RTV in and setting in place
Rocker cover paint using Dark Canyon Red from Dupli-Color code BFM0288

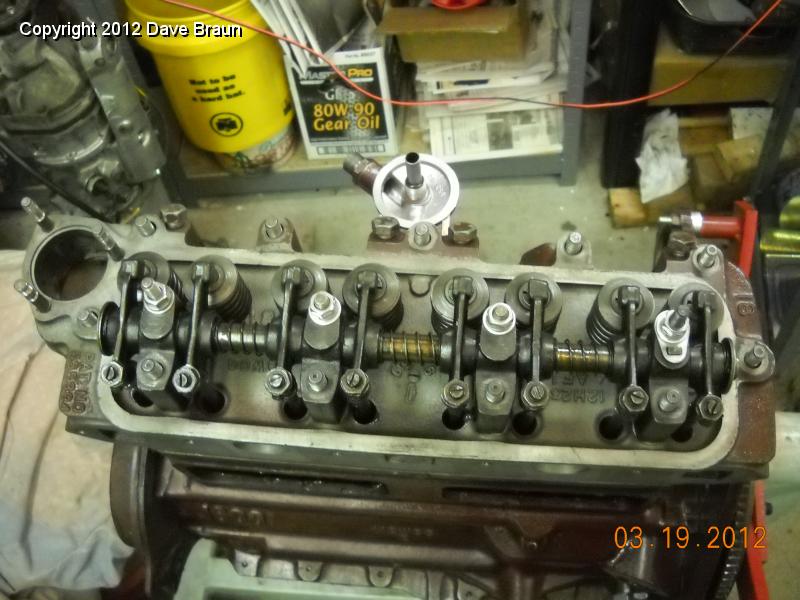

80 | Taller rocker pedestal studs to outside for rocker cover
