KY Jelly is going to help
The ring compressor idea didn't work
A vice and a screw dirver to encourage it worked
Ready to install xrews taped in place for convenience
close up of shouldered bolt washer and nut

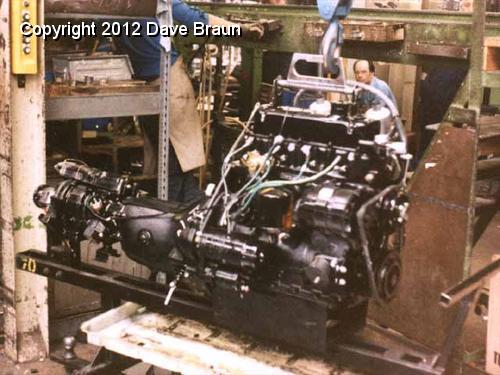

  How the factory did it 0.jpg - This shows an 18V engine at the factory ready to go in. Note the butterfly mount is on the gearbox. After the engine is placed on the mounts, the rear crossmember will be levered on against the rear mount rubbers.
Gearbox installed on engine
Left handed Mike installing speedometoer cable
Found a variety of suggestions on line trying one out
Ears to the rear and then install cross member and tilt into place and bolt
it didn't work with the OD to go with the rear hole 01

28 | This shows an 18V engine at the factory ready to go in. Note the butterfly mount is on the gearbox. After the engine is placed on the mounts, the rear crossmember will be levered on against the rear mount rubbers.
