Perforated presure relief jacket 02
Chamfered OD pump drive cam for reinstalling OD with pump in place
Assembled OD
Trying to decide which way the splines align 01
Trying to decide which way the splines align 02

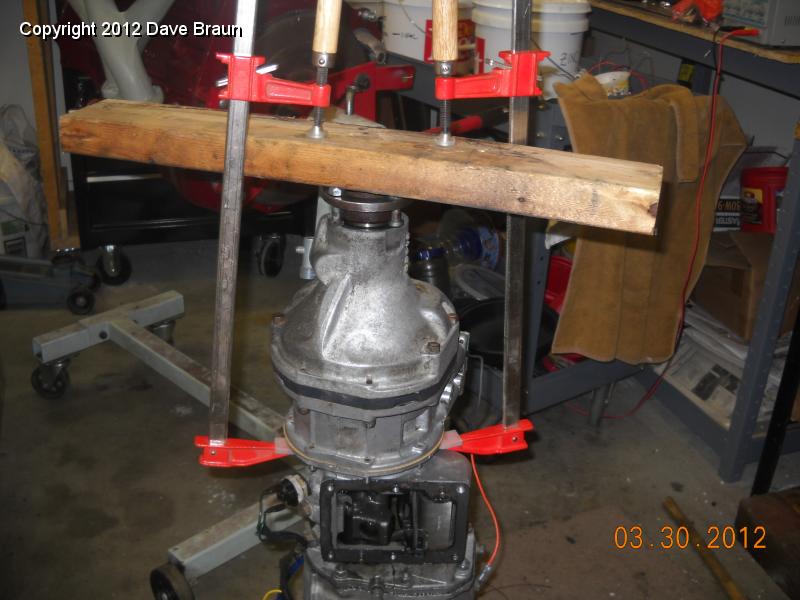

  Once splines are aligned and OD on the adapter clamp with load board and strike the board with a hand sledge.jpg - Two carpenter clamps and a board to spread the load allowed me to preload the force required to get the pump roller to go over the cam. This was something that Mike Hirschman suggested, although I'm not sure if this is the way he does it. Then one good rap with a hand sledge sent the OD housing home. Neither of us liked the Twist video of raising and dropping the OD in place. Although Twist also wggles the flange on the output which may cause a ramping action of the cam against the roller plunger and help bring it home.
Overdrive back in place 02





14 | Two carpenter clamps and a board to spread the load allowed me to preload the force required to get the pump roller to go over the cam. This was something that Mike Hirschman suggested, although I'm not sure if this is the way he does it. Then one good rap with a hand sledge sent the OD housing home. Neither of us liked the Twist video of raising and dropping the OD in place. Although Twist also wggles the flange on the output which may cause a ramping action of the cam against the roller plunger and help bring it home.
