Oil pump plunger in removed overdrive reinstalled
Perforated presure relief jacket 01
Perforated presure relief jacket 02
Chamfered OD pump drive cam for reinstalling OD with pump in place
Assembled OD

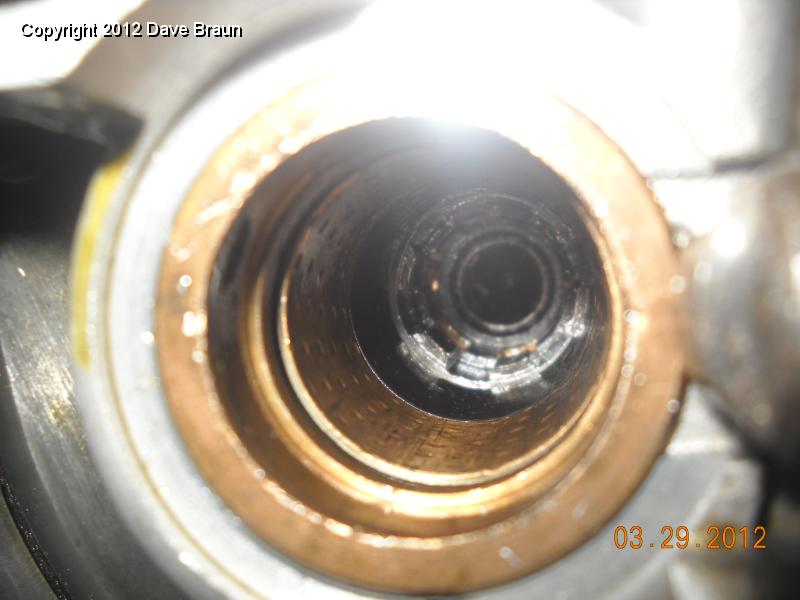

  Trying to decide which way the splines align 01.jpg - Not correct spline alignment in Overdrive. The lower set of splines can be rotated counter clockwise by a screwdriver blade.
Trying to decide which way the splines align 02
Once splines are aligned and OD on the adapter clamp with load board and strike the board with a hand sledge
Overdrive back in place 02



12 | Not correct spline alignment in Overdrive. The lower set of splines can be rotated counter clockwise by a screwdriver blade.
