Perforated presure relief jacket 01
Perforated presure relief jacket 02
Chamfered OD pump drive cam for reinstalling OD with pump in place
Assembled OD
Trying to decide which way the splines align 01

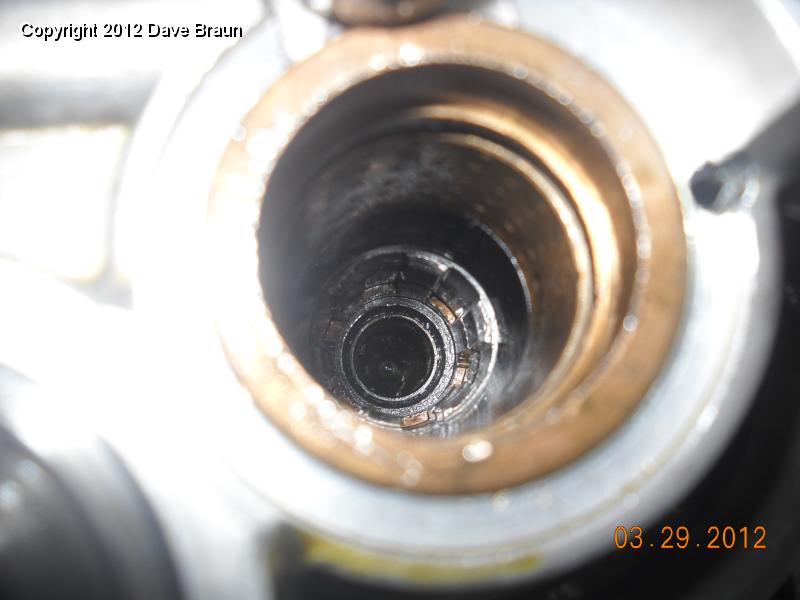

  Trying to decide which way the splines align 02.jpg - Close to the correct alignment; but by trying several combinations of alighments, I got to one that worked well. Then per Mike Hirschman's suggestion, I greased up the splines on the output shaft really, really well, as well as greasing the cam lobe. Once the OD was on the adapter and within 3/16 of an inch or so, it is time to get the OD pump roller to engage the cam.
Once splines are aligned and OD on the adapter clamp with load board and strike the board with a hand sledge
Overdrive back in place 02




13 | Close to the correct alignment; but by trying several combinations of alighments, I got to one that worked well. Then per Mike Hirschman's suggestion, I greased up the splines on the output shaft really, really well, as well as greasing the cam lobe. Once the OD was on the adapter and within 3/16 of an inch or so, it is time to get the OD pump roller to engage the cam.
