Working smaller grommet on right hand loom
Easing firewall grommet down the wire branches
Working regulator wires through grommet
Last branch to pass through the grommet
Final position of grommet will be closer to the last branch

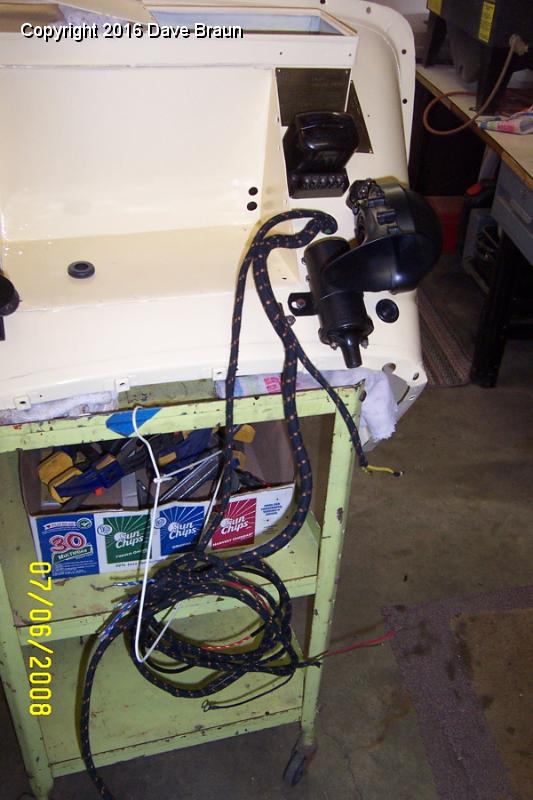

  Sending forward portion of loom through firewall.jpg - Passing all the loom for the front and rear of the car through this hole. It sounds backwards, but I've done three of these now, and it is much easier to work this way because of the cross branches which emerge for the turn signals, the dash and the other side of the firewall.
Forward loom coiled to keep clean
Working large branch and regulator wires through hole
Finally all the wires through
Initial wire up of regulator horn and fuses
Regulator and fuse block tidied up

48 | Passing all the loom for the front and rear of the car through this hole. It sounds backwards, but I've done three of these now, and it is much easier to work this way because of the cross branches which emerge for the turn signals, the dash and the other side of the firewall. Download
