engine contol link disassembled
engine control link painting
old fan belt and new cogged belt
install belt loosely
front and RHS engine

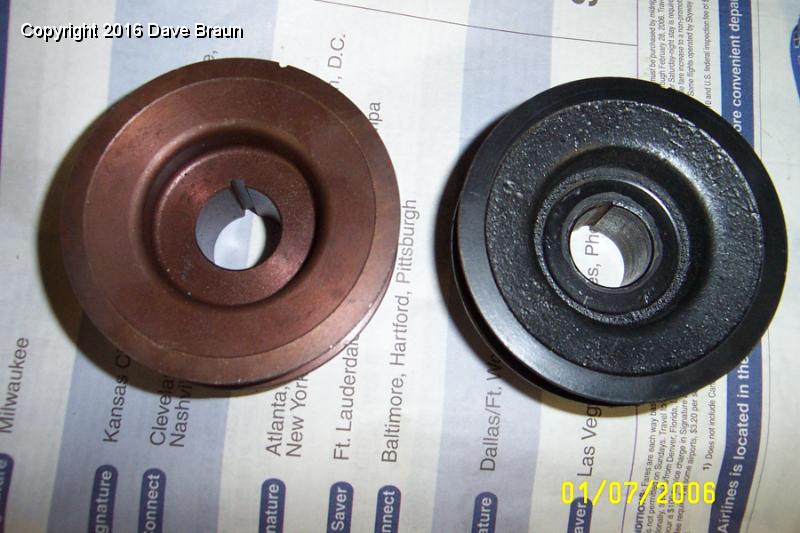

  crankshaft pulley old and new showing 22 degree offset.JPG - Finally, new crankshaft pulley on left. Who would place the timing mark at 22.5 degrees clockwise from the keyway? I figured I had a poorly machined part, until I compared it to my original pulley with the divot in the flange. It matched! So I painted and installed the replacement.
oil filter assy parts
oil filter plate with eclip
oil filter using filter to press plate down to secure eclip
oil fliter eclip in place
oil filter assy ready edge polished

35 | Finally, new crankshaft pulley on left. Who would place the timing mark at 22.5 degrees clockwise from the keyway? I figured I had a poorly machined part, until I compared it to my original pulley with the divot in the flange. It matched! So I painted and installed the replacement. Download
