front wings fitted so we can check bonnet
Bottom bonnet gap a bit much
This side the bonnet gap is more acceptable
raising wing for better bonnet fit
Marking location for rear bonnet strip mount

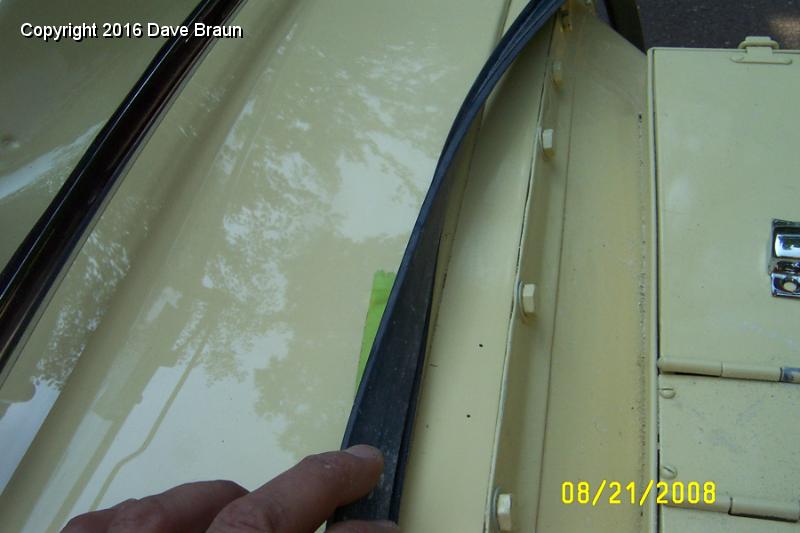

  Pick marks threaded insert location.jpg - Here the marks made by the ice pick are visible.
Threaded inserts installed
New wing location mount
Preparing running board piping
bonnet installed
new bonnet side clearance
