Bottom bonnet gap a bit much
This side the bonnet gap is more acceptable
raising wing for better bonnet fit
Marking location for rear bonnet strip mount
Pick marks threaded insert location

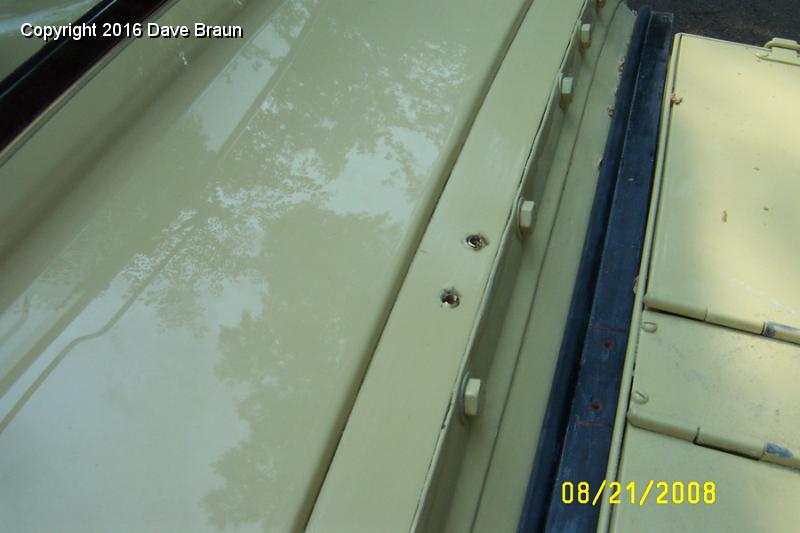

  Threaded inserts installed.jpg - Drilled the 1/4 inch holes in the cowl wood and installed 10-32 threaded inserts. I bought long 10-32 stainless sloted countersunk screws and double nutted them with the threaded insert. Then we turned the threaded inserts in.
New wing location mount
Preparing running board piping
bonnet installed
new bonnet side clearance
Wings and running boards installed

109 | Drilled the 1/4 inch holes in the cowl wood and installed 10-32 threaded inserts. I bought long 10-32 stainless sloted countersunk screws and double nutted them with the threaded insert. Then we turned the threaded inserts in. Download
