raising wing for better bonnet fit
Marking location for rear bonnet strip  mount
Pick marks threaded insert location
Threaded inserts installed
New wing location mount

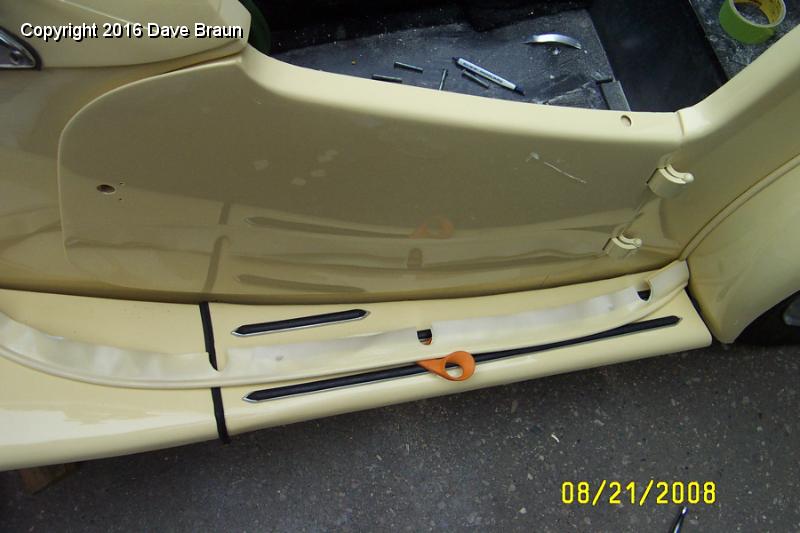

  Preparing running board piping.jpg - The cut outs in the piping were eyeballed and cut. You can see the original color of the piping vinyl and the painted edges. We had new wood and reworked metal so we drilled holes through the tub for the running board after we remounted the wings.
bonnet installed
new bonnet side clearance
Wings and running boards installed
Rear wing interferes with valance
rear valance installed

111 | The cut outs in the piping were eyeballed and cut. You can see the original color of the piping vinyl and the painted edges. We had new wood and reworked metal so we drilled holes through the tub for the running board after we remounted the wings. Download
