on number 4 gudgeon pin pulled out bearing as it had knicks
knicks in bearing of little end of number 4
Rods and gudgeon pins
Removed oil filter adapter stud
Front oil gallery plug

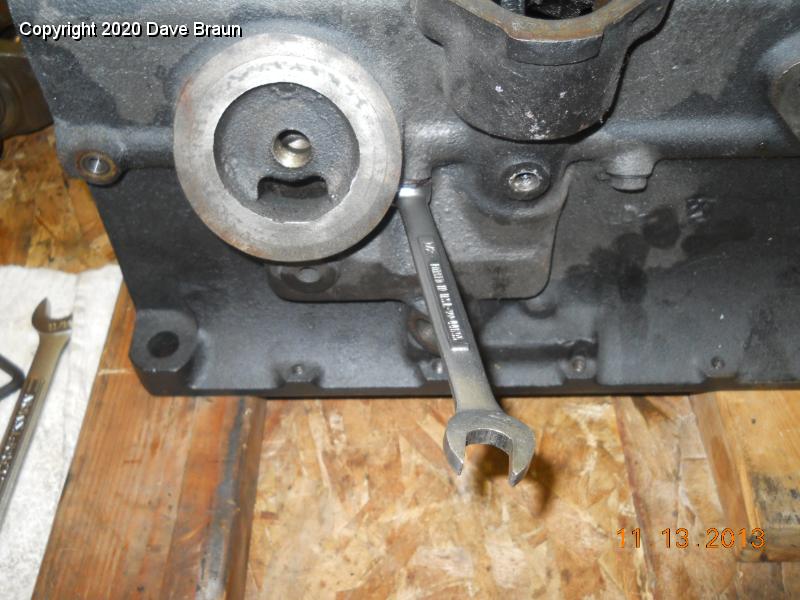

  Side oil gallery plugs.JPG
Oil gallery plugs one allen head plug stayed in
Water jacket plug in side of block
Water jacket plug
Easing out oil dipstick tube (2)
Oil dipstick tube slightly bent
