New clutch bearing and throwout lever pins
Old throwout bearing parts
Comparing wear in old bushes to new bushes (1)
Old and new throwout bearings (1)
Old and new throwout bearings (2)

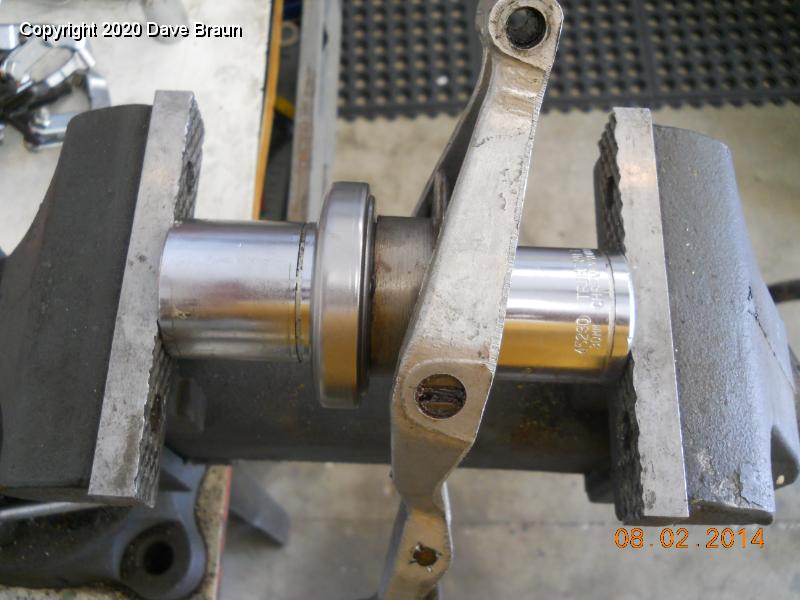

  Installing new throwout bearing.JPG - This is the new throw out bearing. It is 0.645 thick, compared to the original 0.755 thick unit. The old unit is very smooth, but a touch stiffer. Because the hydraulics must take up the slack in the extra 0.11 throw, it will remove some of the tolerance for wear in the pins, even though I have removed as much slack from the system as I could. I ended up removing the new throw out bearing and reinstalling the old, thicker original one.
Tapping out pivot pin retainer
Pin stays in without epoxy
Lubricated clutch slave rod
Installed old throw out bearing (1)
Bench filling slave cylinder

37 | This is the new throw out bearing. It is 0.645 thick, compared to the original 0.755 thick unit. The old unit is very smooth, but a touch stiffer. Because the hydraulics must take up the slack in the extra 0.11 throw, it will remove some of the tolerance for wear in the pins, even though I have removed as much slack from the system as I could. I ended up removing the new throw out bearing and reinstalling the old, thicker original one. Download
