ebay master cylinder
  Silicon RTV to fix minor cap cracking you actually want the venting.jpg
Master cylinder with resivoir removed one screw was sacrificed
push rod and spring clip
this hex comes out and the valve is removed by depressing the primary plunger
half inch hex removes fastener
resivoir o-rings

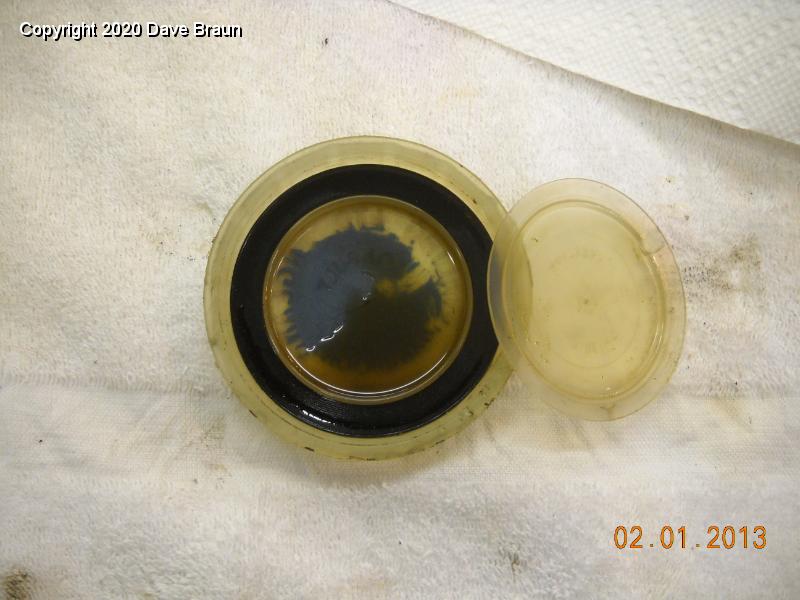

2 | Silicon RTV to fix minor cap cracking you actually want the venting Download
