this hex comes out and the valve is removed by depressing the primary plunger
half inch hex removes fastener
resivoir o-rings
valve
Primary piston and seal
  secondary piston and spring with retainer clip.jpg
retainer clip opened
minor piston and retainer clip
bellvue washer
minor piston seal removed
secondary piston and seal

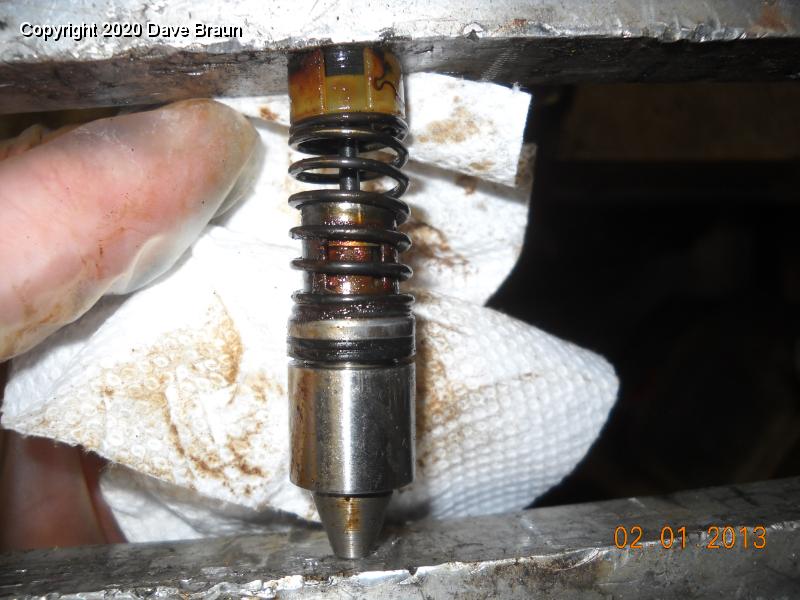

10 | secondary piston and spring with retainer clip Download
