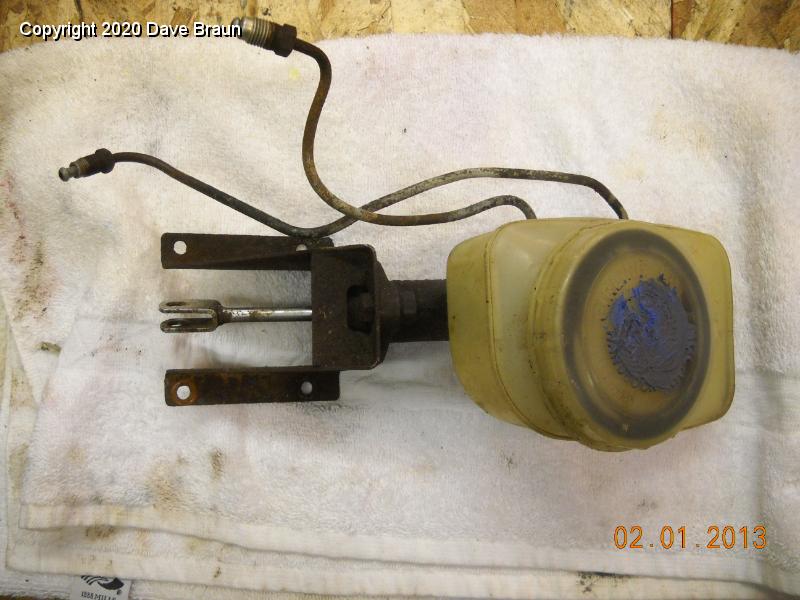

  ebay master cylinder.jpg
Silicon RTV to fix minor cap cracking you actually want the venting
Master cylinder with resivoir removed one screw was sacrificed
push rod and spring clip
this hex comes out and the valve is removed by depressing the primary plunger
half inch hex removes fastener

1 | ebay master cylinder Download
