Master cylinder with resivoir removed one screw was sacrificed
push rod and spring clip
this hex comes out and the valve is removed by depressing the primary plunger
half inch hex removes fastener
resivoir o-rings
Primary piston and seal
secondary piston and spring with retainer clip
retainer clip opened
minor piston and retainer clip
bellvue washer

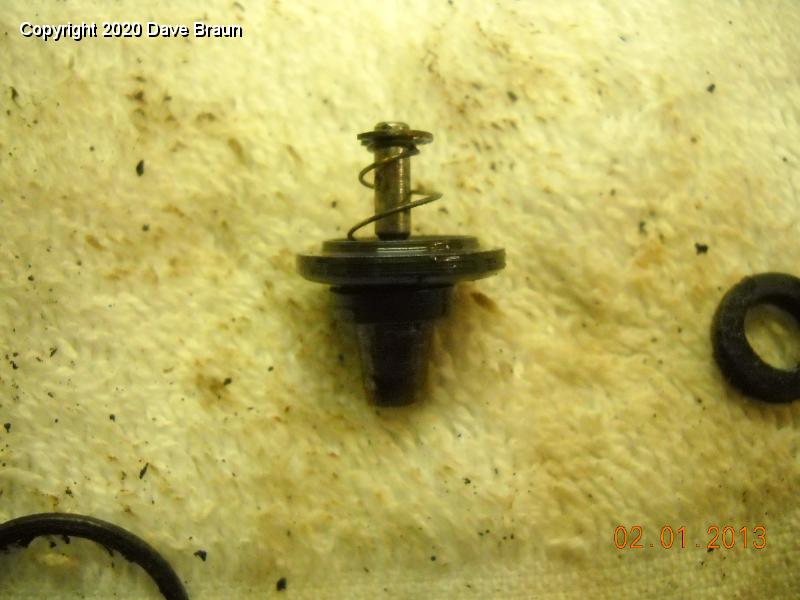

8 | valve Download
